C03 1/4″ 3/2 NC 0-28bar IP65 IP67 Exd

C03 Series Solenoid Valve

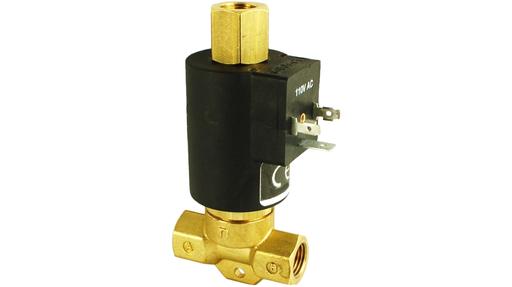

The C03 series three way normally closed solenoid valves manufactured by Nadi Srl in Italy offer reliable operation in a compact valve format. They are available in brass or stainless steel bodies with 1/4″ BSP or NPT threads and suitable for gas or liquid media.

• Pressure range up to 28bar

• Brass or 316 stainless steel bodies

• 1/4″ BSP or NPT ports

• Coils to suit all common voltages. 12, 24, 48, 110, 220VAC or DC

• Special voltages upon request

• 4 different elastomer choices: EPDM, HNBR, NBR & VITON

• Manual override option

• IP65, IP67 & ATEX Ex d


The C03 is ideally suited for process automation control in both safe areas and hazardous area locations. High dependancy actuator control for pneumatic applications, together with compact dimensions, allows the C03 to be used in the most demanding of installations. The valve can be serviced on site and overhaul kits are available for this.

Data Sheet
