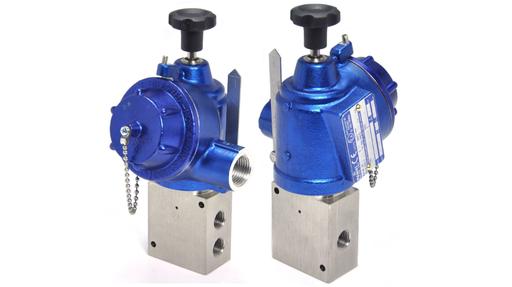

Nadi F Series 3/2 Manual Reset Solenoid Valves

The F series three way manual reset solenoid valves manufactured by Nadi Srl in Italy can only change from ‘Reset’ to ‘Work’ condition by manually operating the latching device. Body materials are brass or stainless steel. Port sizes 1/4″, 3/8″ & 1/2″. The F series are developed for customers who require a safety pilot valve for controlling single acting pneumatic actuators. The F series is suitable for gaseous media. Contact us for the liquid media model.

E Type Operation: Spool of the valve is manually latched to the ‘work’ condition with the coil de-energised. By energising the coil the spool will be unlatched and the valve will return to the ‘Rest’ position.

D Type Operation: Spool of the valve is manually latched to the ‘work’ condition with the coil energised. By de-energising the coil the spool will be unlatched and the valve will return to the ‘Rest’ position.

• Pressure range 0-14bar

• Bodies 1/4″, 3/8″ & 1/2″

• Nickel plated body available upon request

• Coils to suit all common voltages. 12, 24, 48, 110, 220VAC or DC

• Special voltages upon request

• Special model with protruding position indicator pin (can actuate a micro-switch for position feedback applications)
• Elastomer choices: HNBR, NBR & VITON

• IP65, IP67 & ATEX Exd

F Series Solenoid Valve Models

De-energise to return to the ‘rest’ position

Energise to return to the ‘rest’ position
