L20 3/8″ 2/2 NC High Flow High Pressure 2-100bar IP65 IP67 Exd

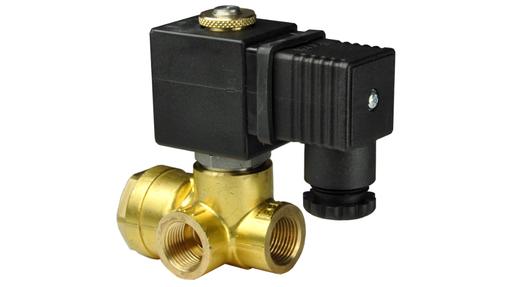

L20 Series Solenoid Valve

The L20 series two way normally closed solenoid valves manufactured by Nadi Srl in Italy offer reliable operation in a compact valve format. They are available in brass bodies with 3/8″ BSP threads. The angle flow through the valve is ideal for mounting in a control box. The L20 series is designed for high pressure media with a high flow coefficient and is suitable for the control of liquid CO2 up to 100 bar (AC).

• Pressure range 2 - 100bar (AC), 2 - 60bar (DC)

• Brass body, optional Niploy Plated Brass

• 3/8″ BSP ports

• Coils to suit all common voltages. 12, 24, 48, 110, 220VAC or DC

• Special voltages upon request

• Different elastomer choices: RULON for general high pressure media. UREPAN for liquid CO2

• IP65, IP67 and Exd options


The L20 is ideally suited for process automation control and pyrotechnic displays, controlling gases and liquid CO2. The valve can be serviced on site and overhaul kits with all the internal component parts available as service items.
