L21 3/8″ 2/2 NO High Flow High Pressure 2-30bar IP65 IP67 Exd

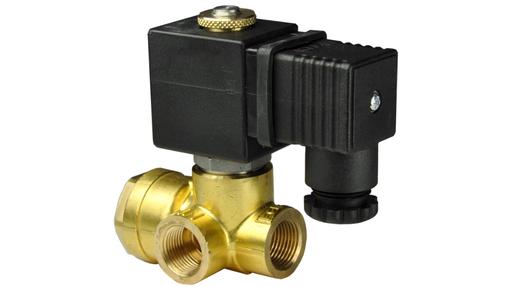

L21 Series Solenoid Valve

The L21 series two way normally open solenoid valves manufactured by Nadi Srl in Italy offer reliable operation in a compact valve format. They are available in brass or nickel plated brass bodies with 3/8″ BSP threads and suitable for gas or liquid media, including liquid CO2.

• Pressure range up to 30bar

• Brass or nickel plated brass bodies

• Coils to suit all common voltages: 12, 24, 48, 110 & 230VAC or DC

• UREPAN for liquid CO2 or PTFE/RULON elastomer choices

• High flow characteristics

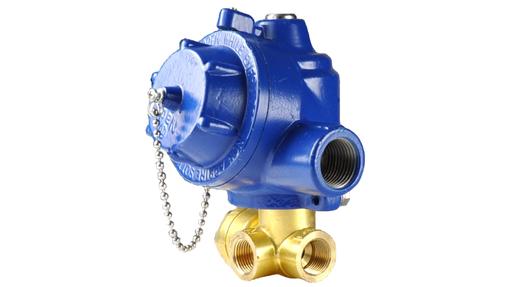

• IP65, IP67 & Ex d


The L21 is ideally suited for process automation control and pyrotechnic display applications for controlling liquid CO2. The optional IP67 weatherproof housing is ideal for outdoor displays. The valve can be serviced on site and overhaul kits are available including all the internal piston parts.

Data Sheet
